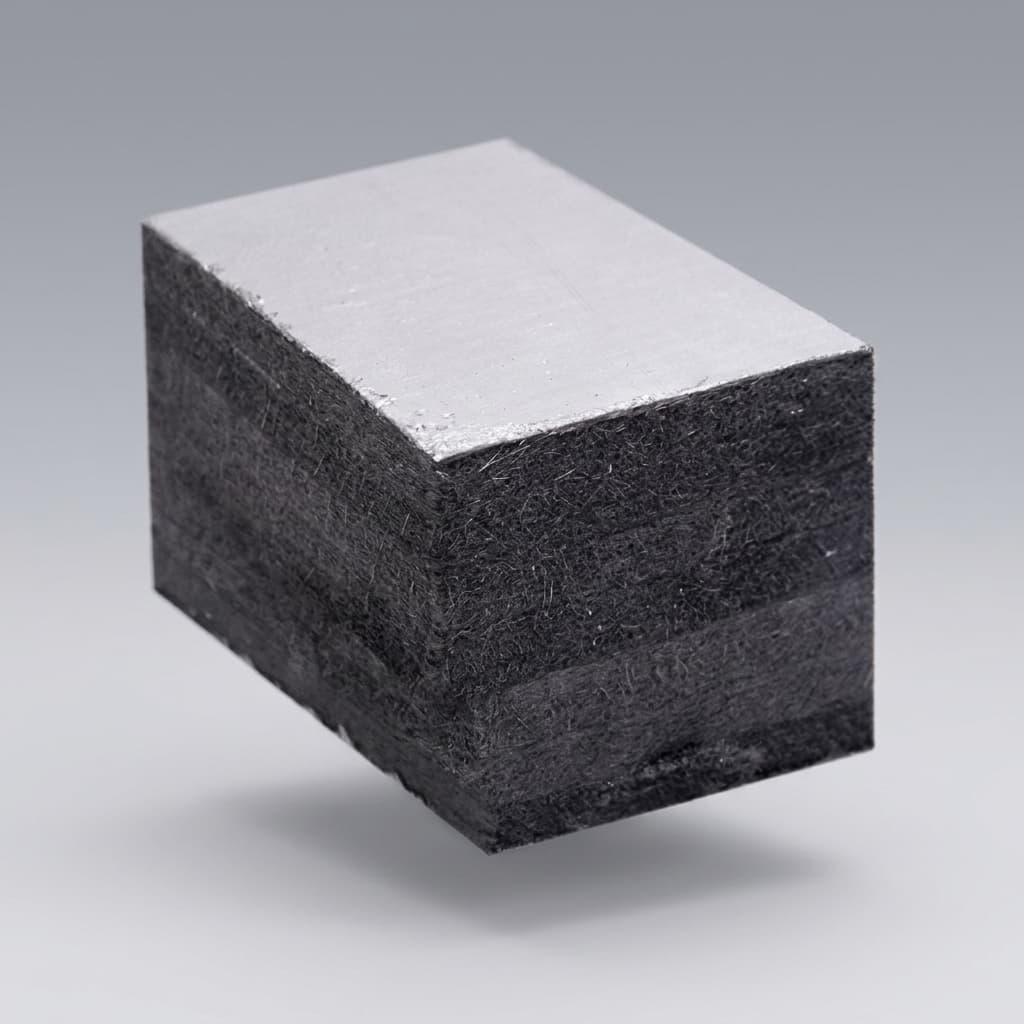

Graphite heaters, shields, support parts, and insulation packages for high-temperature vacuum furnace hot zones used in semiconductor materials and crystal growth support processes.
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Max Temperature | Up to 3000°C | Temperature, atmosphere, and duty cycle determine graphite grade, heater geometry, and insulation route. |
| Resistance and Power Data | Voltage/current/target resistance by heater drawing | Replacement heaters must match electrical behavior closely enough to protect existing furnace recipes. |
| Replacement BOM Depth | Heaters, shields, supports, fixtures, and insulation | Vacuum hot-zone failures often come from interface wear, not one isolated component. |
Decision fit
Furnace builders, maintenance engineers, and procurement teams replacing high-purity graphite hot-zone consumables.
Primary proof point
Up to 3000°C
Temperature, atmosphere, and duty cycle determine graphite grade, heater geometry, and insulation route.
RFQ trigger
| Decision Gate | What Buyers Should Check | Acceptance Evidence |
|---|---|---|
| Use-case fit | Semiconductor material furnace hot zones; Crystal growth support furnaces; High-temperature vacuum furnace graphite replacement BOMs | Application, furnace duty, and buyer-side validation goal are confirmed before material or process route selection. |
| Parameter baseline | Max Temperature: Up to 3000°C; Resistance and Power Data: Voltage/current/target resistance by heater drawing; Replacement BOM Depth: Heaters, shields, supports, fixtures, and insulation | Target ranges, report needs, and pass/fail criteria are written into the RFQ or sample approval plan. |
| Risk closure | Heater failure: Review bridge thickness, terminal geometry, resistance target, ramp rate, and support stress before replacement.; Unexpected furnace downtime: Use wear photos, replacement history, annual consumption, and spare planning to prioritize urgent parts. | Drawing notes, inspection scope, cleaning, coating, packaging, and traceability controls are agreed before repeat supply. |
| RFQ completeness | Furnace dimensions and current graphite hot-zone BOM; Operating voltage/current, temperature, and atmosphere; Drawings, wear photos, replacement cycle, and annual consumption; Graphite grade, density, ash target, insulation format, and cleaning needs | Engineering can return a quote direction without avoidable loops for drawing, purity, coating, quantity, or delivery gaps. |
Map the current furnace architecture, consumable wear pattern, purity risk, and replacement schedule.

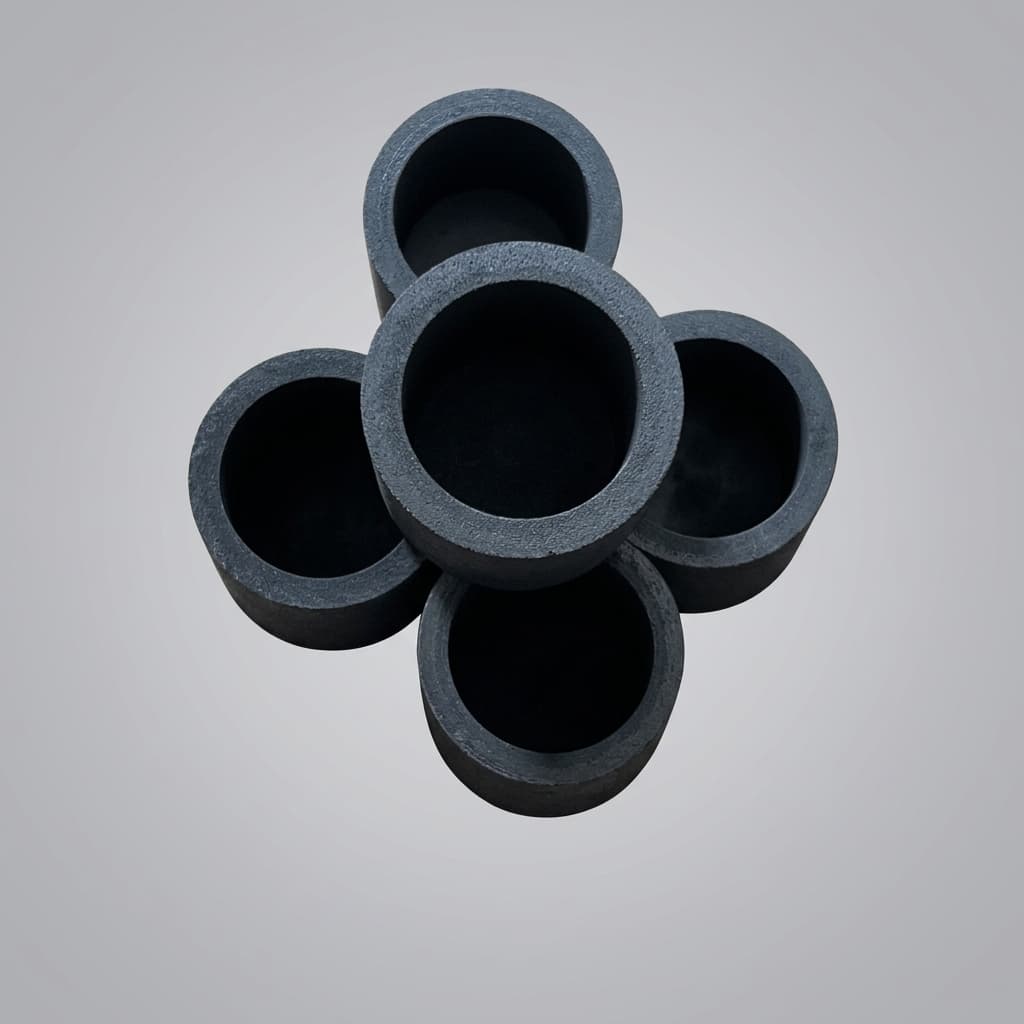

Select crucibles, heaters, susceptors, insulation, shields, and support parts that match the thermal-field duty.
Define sample quantities, acceptance evidence, inspection reports, and qualification steps before recurring supply.
Plan batch traceability, annual forecast, packaging controls, and shipment windows for repeat consumables.
Compare crucibles, heaters, susceptors, felt insulation, and machined graphite parts.
Review ash and impurity controls for contamination-sensitive furnace consumables.
Prepare custom OEM parts when standard geometry cannot match the furnace interface.
Open the related page to continue technical qualification.
Open the related page to continue technical qualification.
Inquiry Email
Attach DWG, STEP, or PDF drawings and include purity, tolerance, quantity forecast, and delivery country.
Instant Chat
+8618857971991
Use WhatsApp for quick engineering clarification before a formal quote.
Yes. Send drawings, photos, measured dimensions, resistance data where relevant, and the furnace interface so we can review equivalent replacement routes.
Yes. Heaters, shields, support parts, and felt insulation should ideally be reviewed together because stack-up and thermal behavior are linked.
Provide the current BOM, failure mode, wear photos, downtime window, annual consumption, destination, and any target inspection evidence.
